WiiM CI MOD S

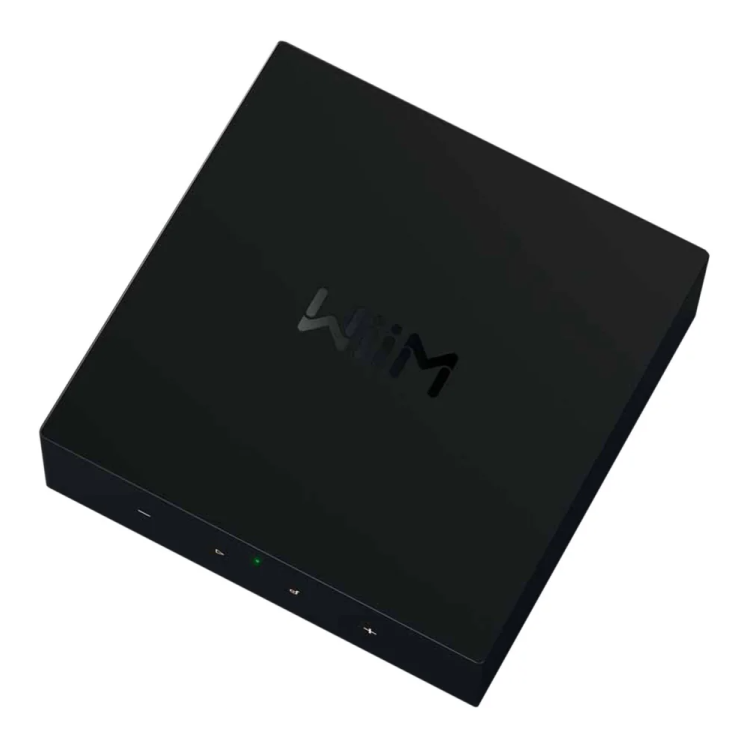

WiiM CI MOD S – Professional Network Music Streamer for Custom Installations

Developed in collaboration with Origin Acoustics, the WiiM CI MOD S is a professional-grade network music streamer from the new Professional CI Series, designed specifically for demanding custom installation environments.

Equipped with the high-precision AKM AK4493SEQ DAC, the CI MOD S delivers true Hi-Res audio playback up to 192 kHz / 24-bit. It supports popular streaming technologies and services such as Spotify, TIDAL Connect, Alexa Cast and DLNA, and integrates seamlessly with Amazon Echo, Google Home and other WiiM devices for multiroom audio systems.

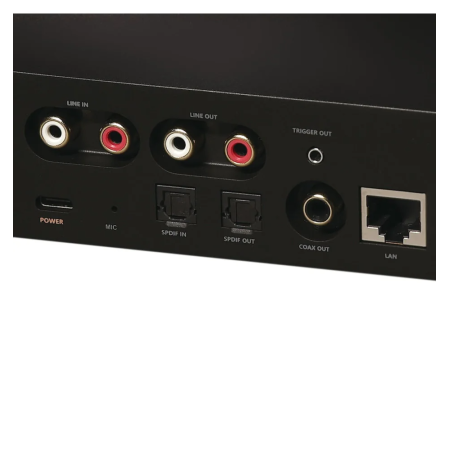

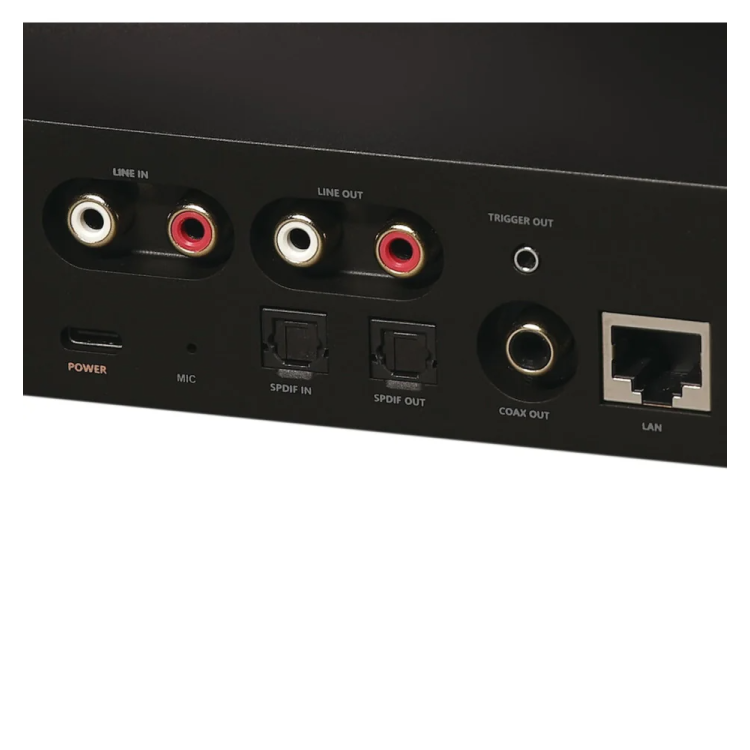

Thanks to its wide range of inputs and outputs, the WiiM CI MOD S can be easily integrated into virtually any audio system. It offers analog RCA inputs and outputs, optical digital input and output, coaxial output, and a 3.5 mm Trigger Out. For modern connectivity, it features dual-band Wi-Fi, Bluetooth 5.0, Ethernet and built-in Chromecast support.

Designed for both residential and professional use, the single-zone WiiM CI MOD S is part of the Professional CI Series and comes in a compact, rack-mountable enclosure, making it ideal for AV racks and structured audio installations.

Technical Specifications – WiiM CI MOD S

Brand: WiiM
Series: Professional CI Series
Model: CI MOD S
Type: Network music streamer

Inputs:
RCA L/R
Optical

Outputs:
RCA L/R
Optical
Coaxial
3.5 mm Trigger Out

Bluetooth: 5.0

Memory:
512 MB DRAM
512 MB Flash

DAC: AKM AK4493SEQ
Processor: Quad-Core ARM Cortex-A53

Network Connectivity:
Bluetooth
Chromecast
DLNA
Ethernet
Wi-Fi

Signal-to-Noise Ratio (SNR): 121 dB
THD+N: –113 dB (0.00023%)
Maximum Sample Rate: 192 kHz / 24-bit

Zones: 1

Multiroom Support:
Amazon Echo
Google Home
WiiM ecosystem

Music Services:
Alexa Cast
Amazon Music
Deezer
Napster
Pandora
Qobuz
SoundCloud
SoundMachine
Spotify
TIDAL
TIDAL Connect
TuneIn
iHeartRadio
vTuner

Supported Audio Formats:
AAC, AIFF, ALAC, APE, FLAC, MP3, OGG, WAV, WMA

Features:
Gapless playback
Rack-mount ready

Pack Unit: 1 pc
Colour: Black
Warranty: 2 years
