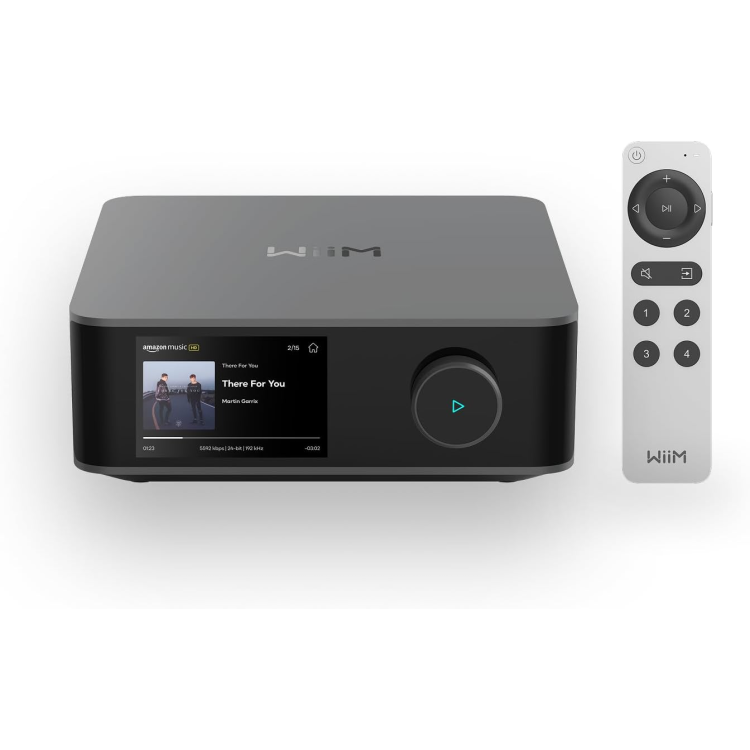

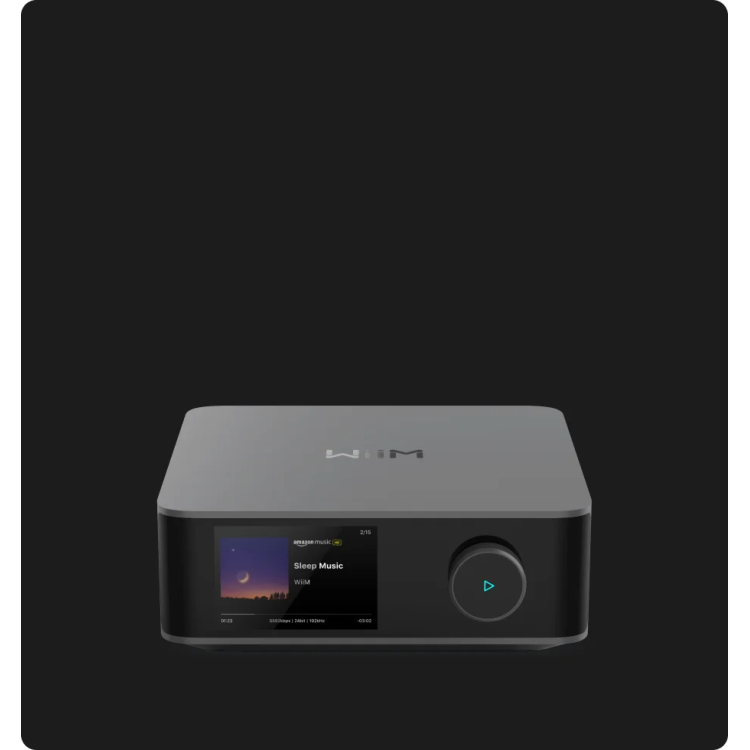

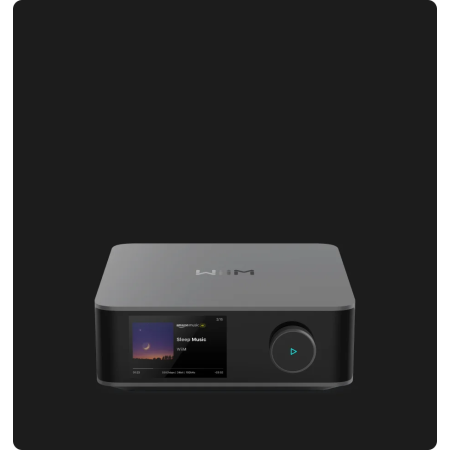

Wiim AMP ULTRA Space Grey

WiiM Amp Ultra – pure power, modern control

WiiM Amp Ultra is a high-end streaming amplifier built for music lovers, home-theater fans and smart-home setups. It delivers 100 W per channel at 8 Ω with ultra-low distortion, powered by the ESS ES9039Q2M DAC, dual TI TPA3255 modules and TI OPA1612 op-amps. The unibody aluminum chassis with a bright 3.5" glass touchscreen makes operation quick and elegant, while advanced thermal design keeps performance stable even under heavy load.

It brings next-generation connectivity with Wi-Fi 6E, Bluetooth 5.3, HDMI ARC, and wide streaming support: Chromecast, Alexa Cast, Spotify Connect, TIDAL Connect, Qobuz, DLNA, SqueezeLite and Roon Ready. The built-in RoomFit™ calibration tailors the sound to your room, and PFFB technology ensures consistent clarity regardless of the speaker load. With extensive EQ options, subwoofer control, multiroom audio and seamless app or voice operation, Amp Ultra becomes the all-in-one hub for any premium audio system.

Dimensions & Weight
Size: 7.87 × 8.3 × 3 in (200 × 211 × 76.2 mm)
Weight: 5.4 lbs (2.45 kg)

Audio Performance
• Power Output (THD = 0.08%, 2 ch): 100 W per channel @ 8 Ω, 200 W per channel @ 4 Ω
• Amplifier Type: Class-D with PFFB (Post-Filter Feedback)
• THD+N: ≤0.005%, –106 dB (A-weighted)
• SNR: ≥120 dB
• Damping Factor: 94
• Frequency Response: 20 Hz–20 kHz ±0.5 dB
• Impedance Range: 2–8 Ω

Audio Processing
• ESS 9039Q2M DAC
• Dual TI TPA3255 amplifier modules
• TI OPA1612 op-amps
• Bit-perfect playback up to 192 kHz / 24-bit
• Dynamic range ≥120 dB

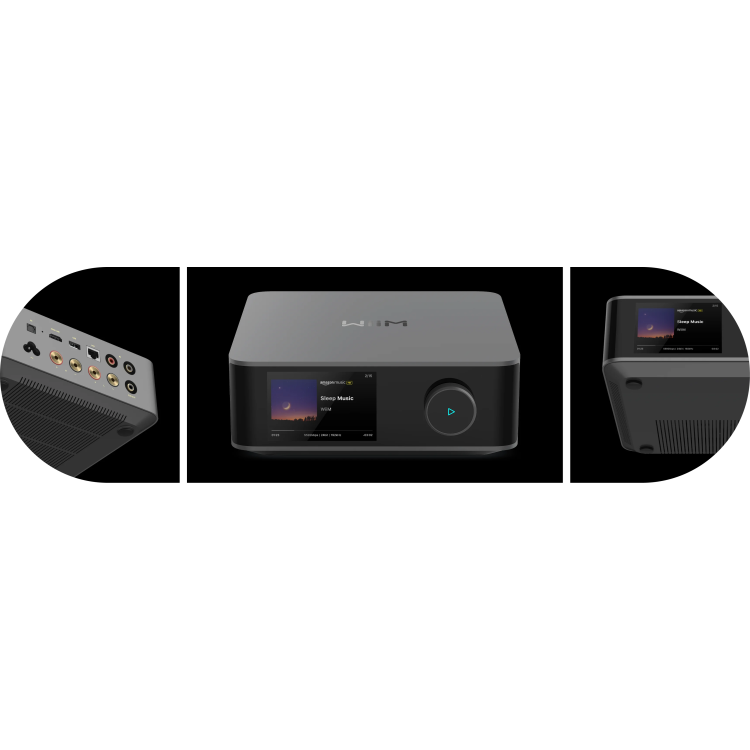

Input & Output Options
Analog Inputs:
• 1× RCA stereo

Digital Inputs:
• 1× Optical (TOSLINK) – up to 192 kHz / 24-bit
• HDMI ARC – PCM up to 192 kHz / 24-bit, Dolby Digital 5.1

Speaker Outputs:
• Gold-plated binding posts

USB Audio Output:
• Up to 8-channel 24-bit/192 kHz (UAC 2.0)

Subwoofer Output:
• RCA mono

Wireless & Network Connectivity
Wireless:
• Bluetooth 5.3 (A2DP Rx/Tx, AVRCP, HID, WiiM voice remote support)
• Wi-Fi 6 (upgradeable to Wi-Fi 6E)

Wired:
• Ethernet 100 Mbps (RJ45)

EQ & Sound Customization
• Input-specific EQ for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In
• 24 preset EQ profiles
• 10-band graphic & parametric EQ
• Built-in RoomFit™ calibration with guided measurement

Streaming & Smart Features
• WiiM Home App
• Chromecast
• Spotify Connect
• TIDAL Connect
• DLNA, LMS
• Roon Ready (pending certification)

Multi-Room Audio: WiiM, Google Home, Alexa
Stereo Pairing: L/R pairing supported
Home Theater Mode: Works as front, center or surround channel via HDMI ARC (Dolby 5.1)
Smart Presets: One-touch access to routines and favorite sources
Alarm Clock: Custom time, schedule and source

Touch Display
• 3.5" glass-covered capacitive touchscreen
• Playback control, album art, EQ, input switching
• Queue view, presets, VU meters
• Custom wallpapers
• Firmware updates directly on screen

Design & Controls
• Precision-milled unibody aluminum chassis
• Dimensions: 7.9" × 2.9" × 7.9" (200 × 75 × 200 mm)
• Weight: 5.4 lbs (2.45 kg)
• Multifunction rotary knob
• Passive cooling with copper heat pipe, large aluminum heatsink and PID control

Package Contents
• User Guide
• Power Cable
• RCA Cable
• Optical Cable
• HDMI Cable
• WiiM Voice Remote 2
• Banana Plugs ×4
