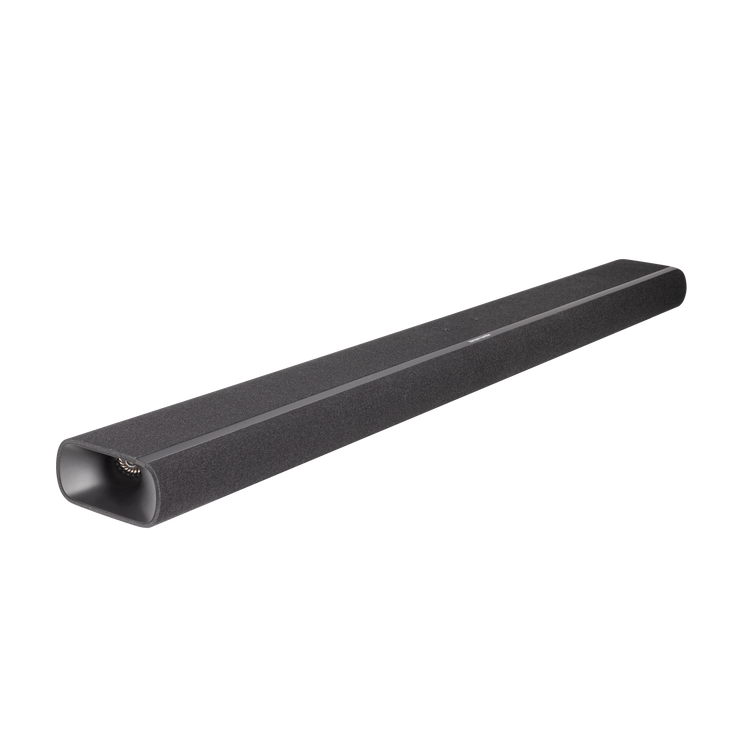

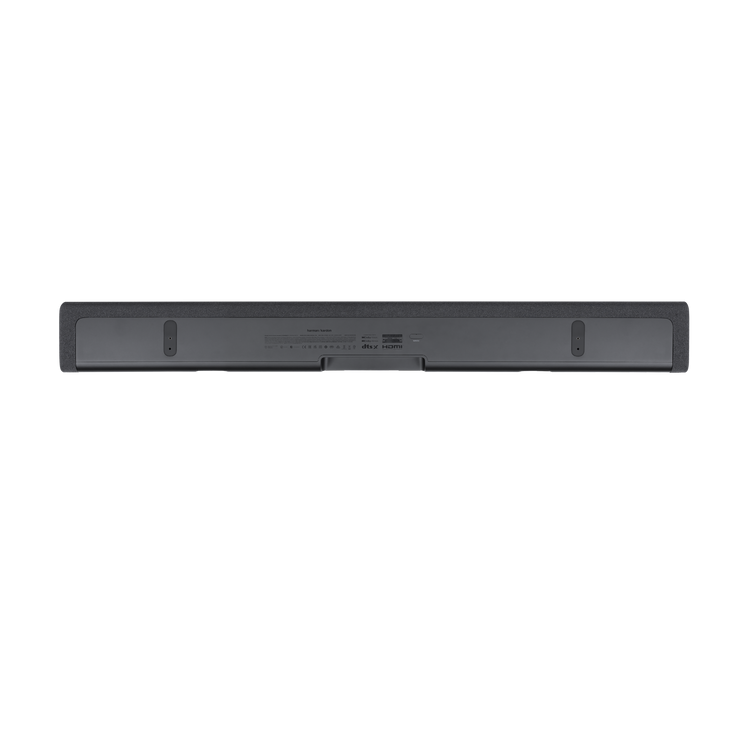

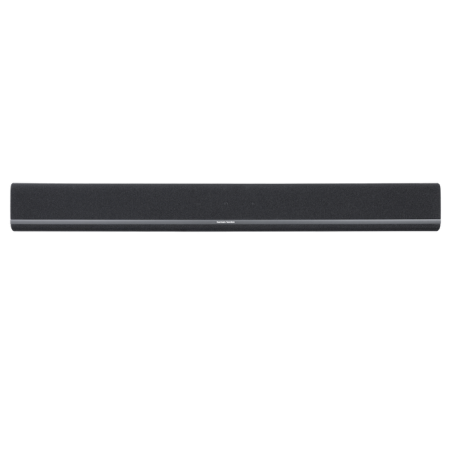

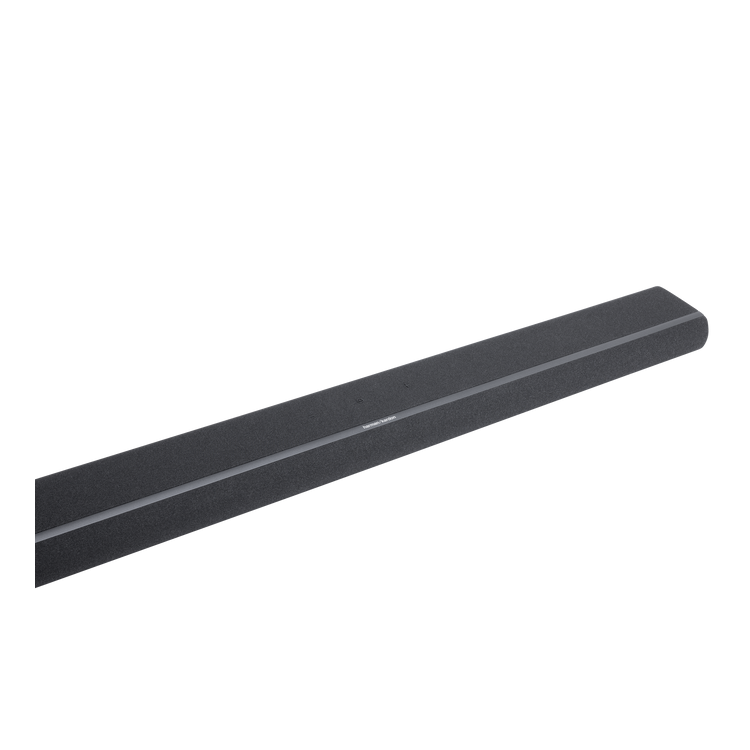

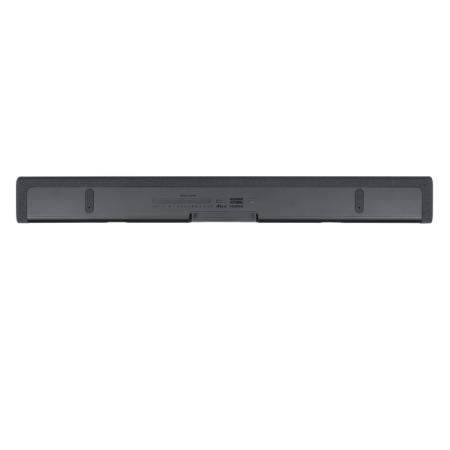

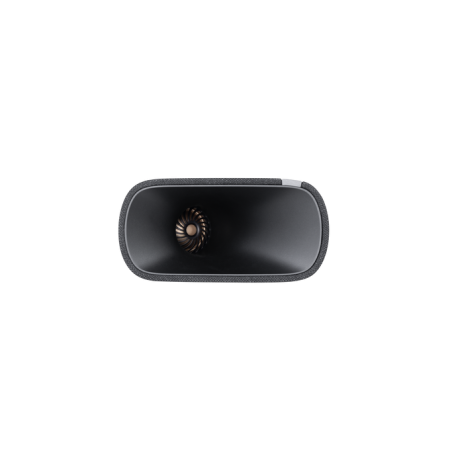

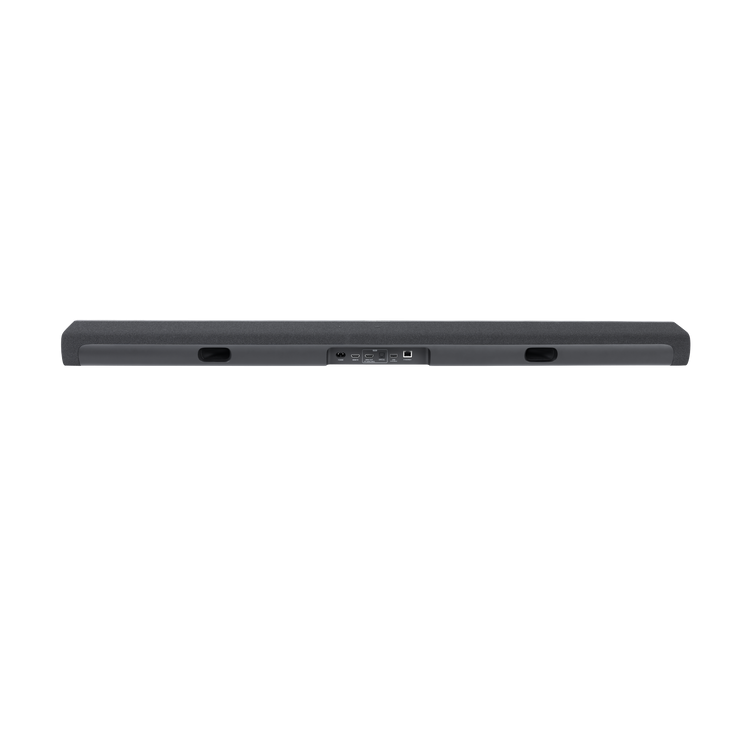

Harman Kardon ENCHANT 1100

General Specifications

Power supply

100 – 240 V AC, ~ 50/60 Hz

Total speaker power output (RMS @THD 1%)

315 W

Soundbar output power (RMS @THD 1%)

8 x 30 W woofer and full-range + 3 x 25 W tweeter

Soundbar transducer

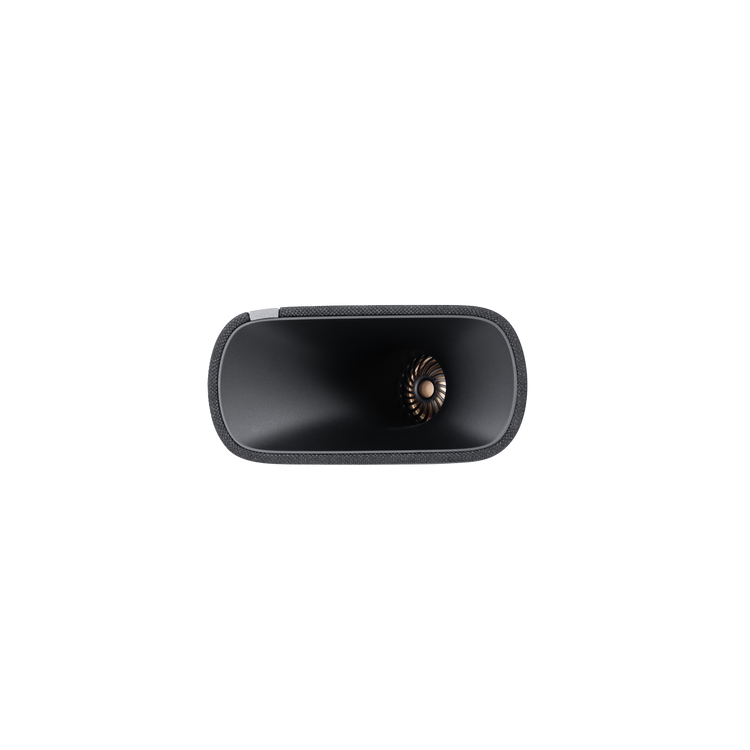

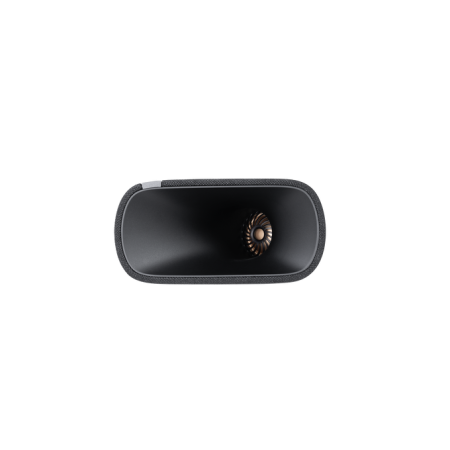

6x (55 x 90) mm racetrack drivers, 3x 1" (25 mm) tweeters, 2x 2.75" (70 mm) up-firing full-range drivers

Networked standby power

< 2.0 W

Operating temperature

0 °C – 45 °C

HDMI video input

1

HDMI video output (with Enhanced Audio Return Channel, eARC)

1

HDMI HDCP version

2.3

HDR pass through

HDR10, Dolby Vision

Audio Specifications

Frequency response

52 Hz - 20 kHz (-6 dB)

Audio inputs

1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Dimensions (W x H x D)

1150 x 65 x 130 mm / 45.2" x 2.6" x 5.1"

Weight

4.6 kg / 10.1 lbs

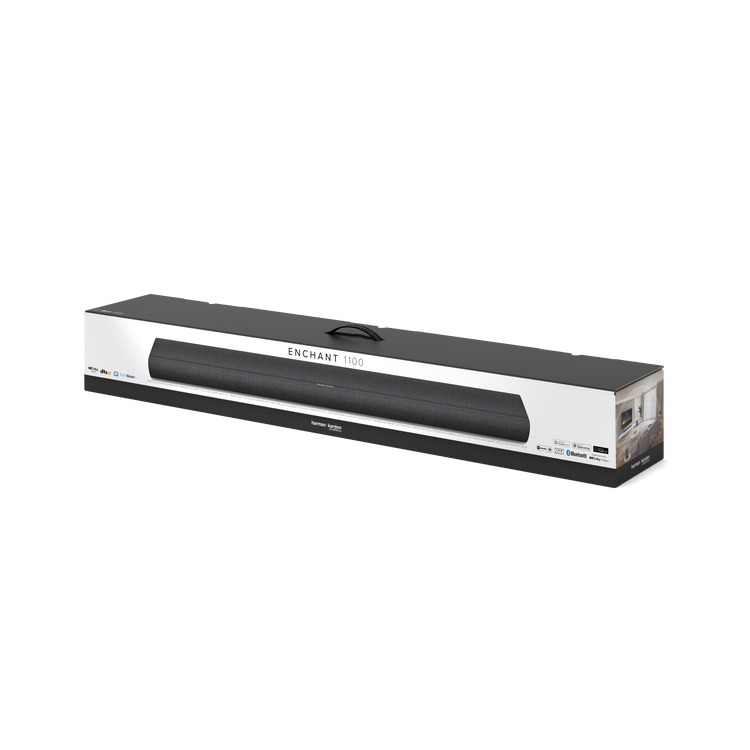

Packaging dimensions (W x H x D)

1250 x 160 x 190 mm / 49.2" x 6.3" x 7.5"

Packaging weight

7.2 kg / 15.9 lbs

Control and Connection Specifications

USB port

Type A

USB rating

5 V DC, 0.5 A

Supporting file format

MP3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 - 48 kHz

MP3 bitrate

80 - 320 kpbs

Bluetooth version

5.3

Bluetooth profile

A2DP 1.3.2, AVRCP 1.5

Bluetooth transmitter frequency range

2400 MHz – 2483.5 MHz

Bluetooth transmitter power

< 12 dBm (EIRP)

Wi-Fi network

IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range

2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi transmitter power

< 20 dBm (EIRP)

5G Wi-Fi transmitter frequency range

5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power

5.15 - 5.25GHz <23dBm (EIRP), 5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm (EIRP), 5.725 - 5.825GHz <14dBm (EIRP)
